DDG ‘Sheffield’ Klasse

Type 42 Batch I – ‘Sheffield’ Klasse

Type 42 Batch II – ‘Exeter’ Klasse

Type 42 Batch III – ‘Manchester’ Klasse

D 97 ‘Edinburgh’ (2006 – Kiel)

Typverdrängung: 4.100 ts
Höchstverdrängung: 4.775 ts
Länge: 141,12 m
Breite: 14,90 m
Tiefgang über Kiel: 4,20 m
Tiefgang über Sonar / Schrauben: 5,80 m
Besatzung: 287 (max. 312)
Art: COGOG (COmbined Gas or Gas)
Wellen: 2x
Leistung Gasturbine: 2x 5.340 Ps = 10.680 Ps
(Rolls-Royce ‘Tyne RM-1C’ – Cruising, bis 18 kn)
Leistung Gasturbine: 2x 27.200 Ps = 54.400 Ps
(Rolls-Royce ‘Olympus TM-3B’ – High Speed)
max. Geschwindigkeit: 30 kn
Reichweite: 4.750 nm bei 18 kn
Treibstoffvorrat Schiff: 610 ts
Nav.-Radar: 1x Type 1007
  1x Type 1008
See-Radar: 1x Type 996(1)

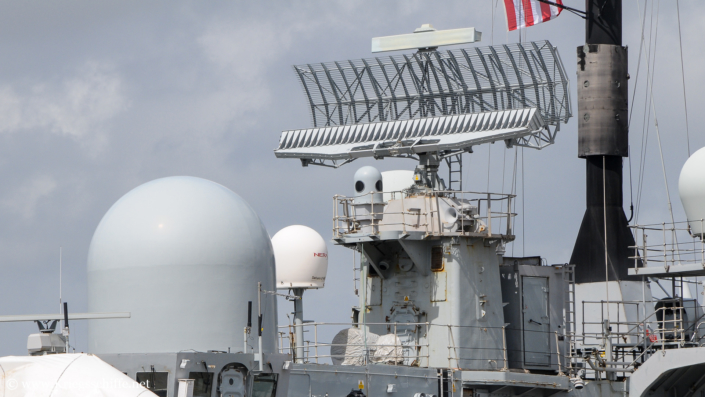

Luft-Radar: 1x Type 1022
Rumpf-Sonar: 1x Type 2050
  1x Type 162M
Schlepp-Sonar:
Feuerleitradar: 2x Type 909(1)
Elektrooptisch: 2x 2100 (Rademac)
ESM: 1x
UAT
ECM: 1x Type 675
Täuschkörper: 4×6 ‘Sea Gnat’
  2×2 DLF-3 ‘Rubber Duck’
  1x Type 2170 (SLQ-25A)
Geschütze: 1×1 114 mm /55 cal Mk 8 Mod 1
SSM:
SAM: 1×2 ‘Sea Dart’  (GWS 30) (40x FK)
ASW:
CIWS: 2×1 20 mm ‘Phalanx’ Mk 15 Mod 1B
Sonstiges:
Hubschrauber: 1x Westland HAS 8 ‘Sea Lynx’
