FFG ‘Talwar’ Klasse

(Projekt 1135.6)

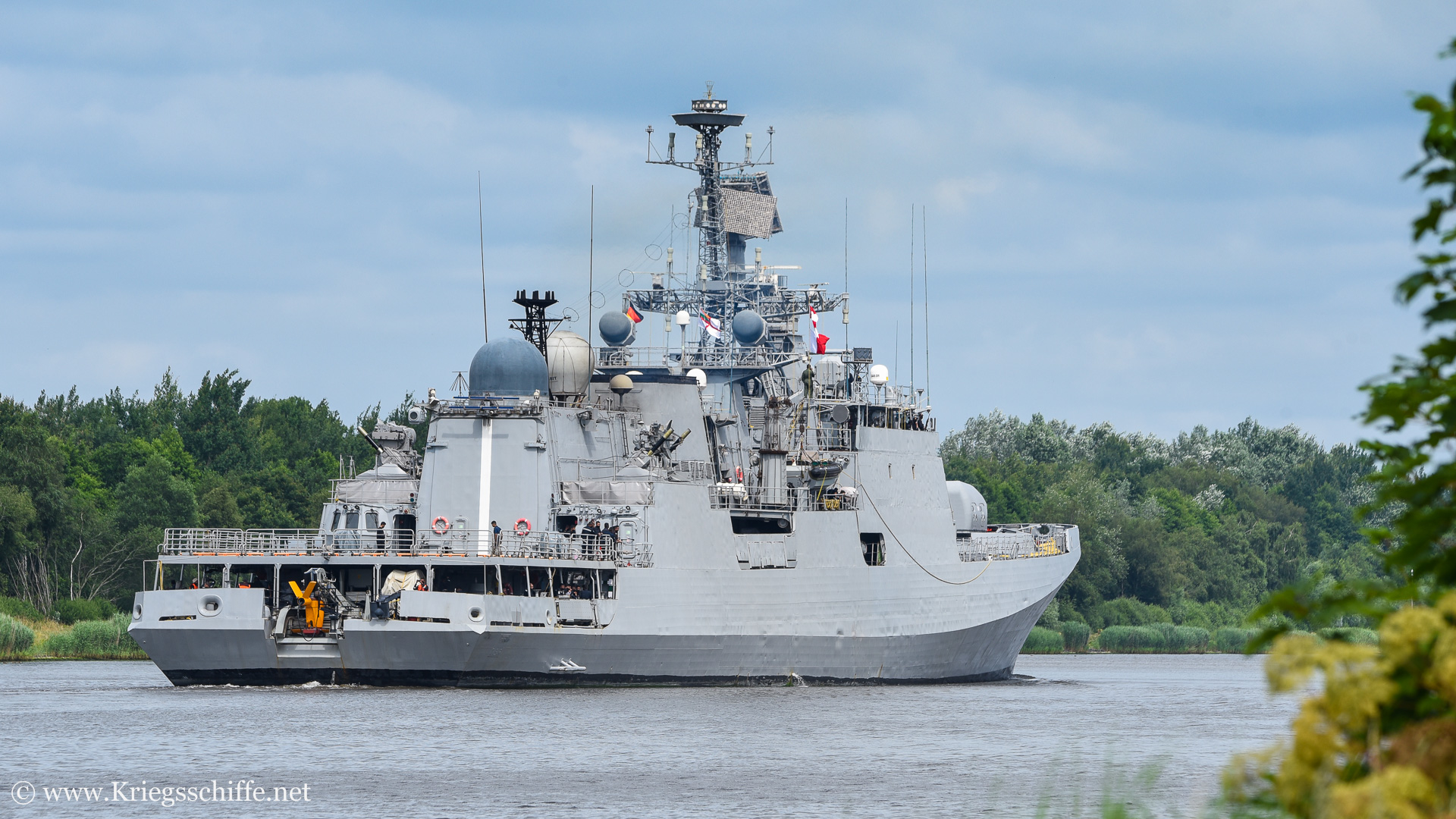

F 50 ‘Tarkasch’ (2019 – Kiel)

Typverdrängung: 3.300 ts (Batch I: 3.100 ts)
Höchstverdrängung: 3.980 ts (Batch I: 3.780 ts)
Länge: 126,0 m
Breite: 15,2 m
Tiefgang: 4,2 m
Besatzung: 180
Art: COGAG (COmbined Gas and Gas)
Wellen: 2x
Leistung Gasturbine: 2x 9.000 Ps = 18.000 Ps
(DS-71)
Leistung Gasturbine: 2x 19.500 Ps = 39.000 Ps
(DT-59)
max. Geschwindigkeit: 32 kn (Batch I: 33 kn)
Reichweite: 4.500 nm bei 15 kn
  900 nm bei 30 kn
Treibstoffvorrat Schiff: ? ts

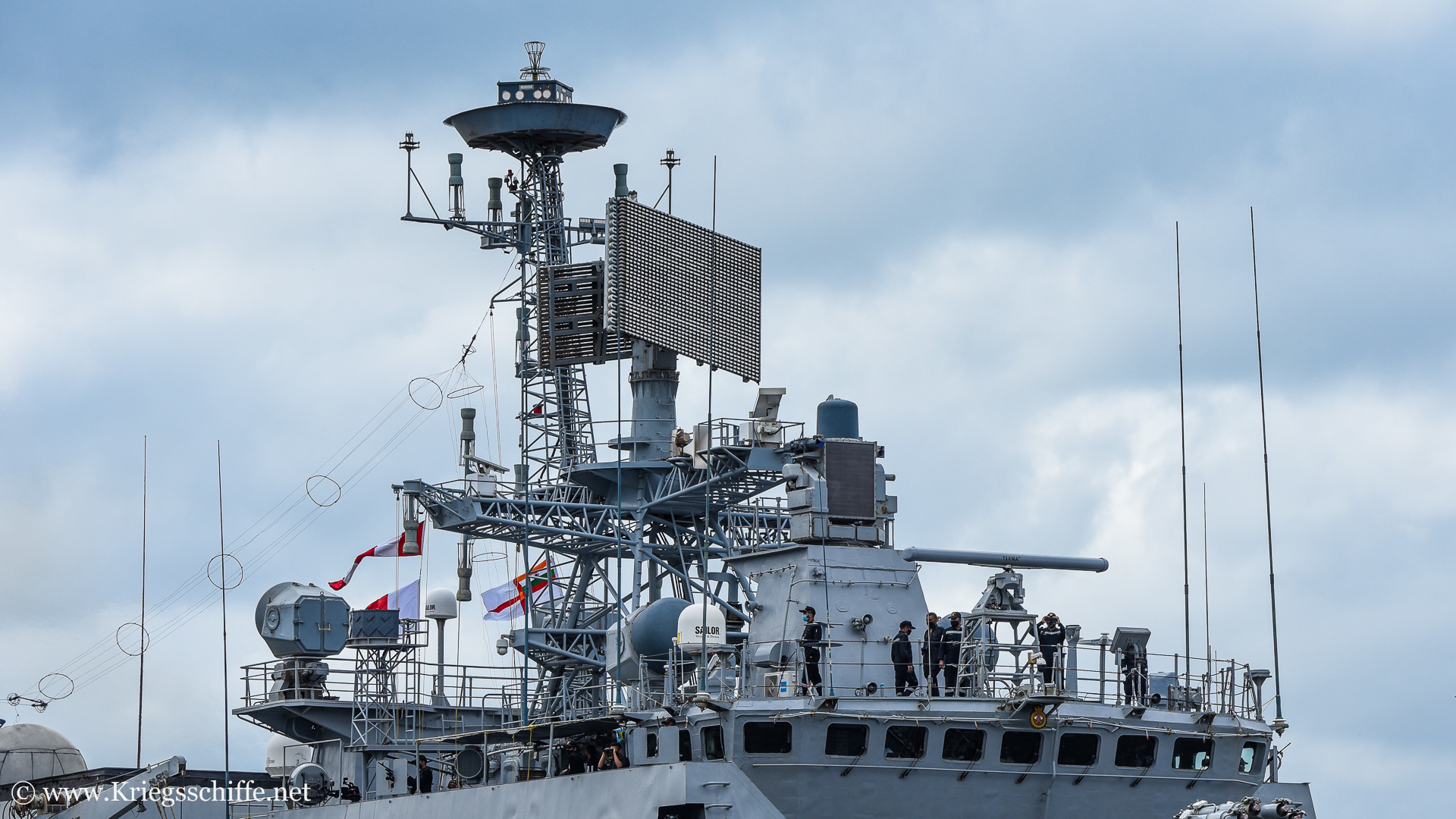

Nav.-Radar: 1x ‘Palm Front’
  1x
Nucleus-2 6000A
See-Radar: 1x ‘Cross Dome’
Luft-Radar: 1x ‘Top Plate’
Bug-Sonar: 1x HUMSA
Schlepp-Sonar   ?
Feuerleitradar: 4x ‘Front Dome’
  1x
‘Puma’
Elektrooptisch:
ESM: 1x
Bharat Ajanta
ECM: 1x ASOR 11356
Täuschkörper: 2x PK 2
Geschütze: 1×1 100 mm  ‘A-190E’
SSM: 8×1 SS-N-27 ‘Sizzler’
VLS (3M54E ‘Club-N’ / ‘Kalibr’)
SAM: 1×1 SA-N-12 ‘Grizzly’ 24 FK (9M317ME)
ASW: 1×1 RBU 6000
CIWS 2×1 AK-630M (Batch I: CADS-N-1 ‘Kashtan’)
Sonstiges: 2×2 533 mm DTA-53-11356
Hubschrauber: 1x Ka-28 oder Ka-31 ‘Helix’
