(Belgien, ex Niederlande)

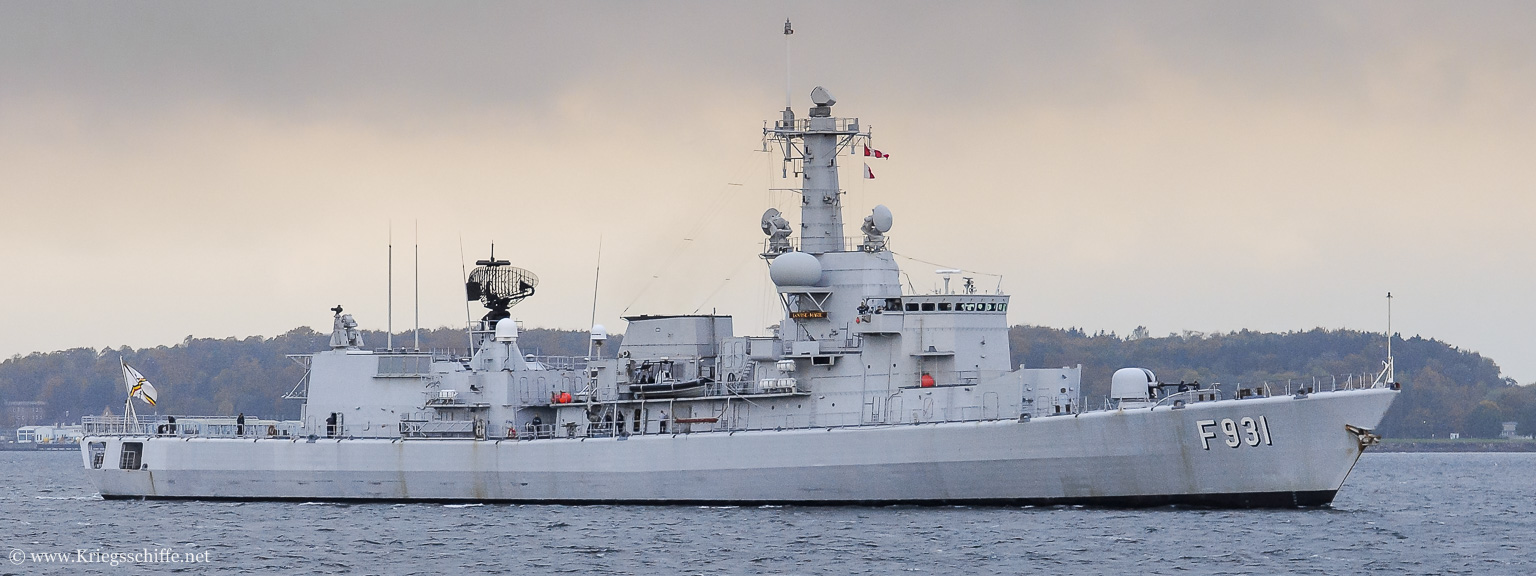

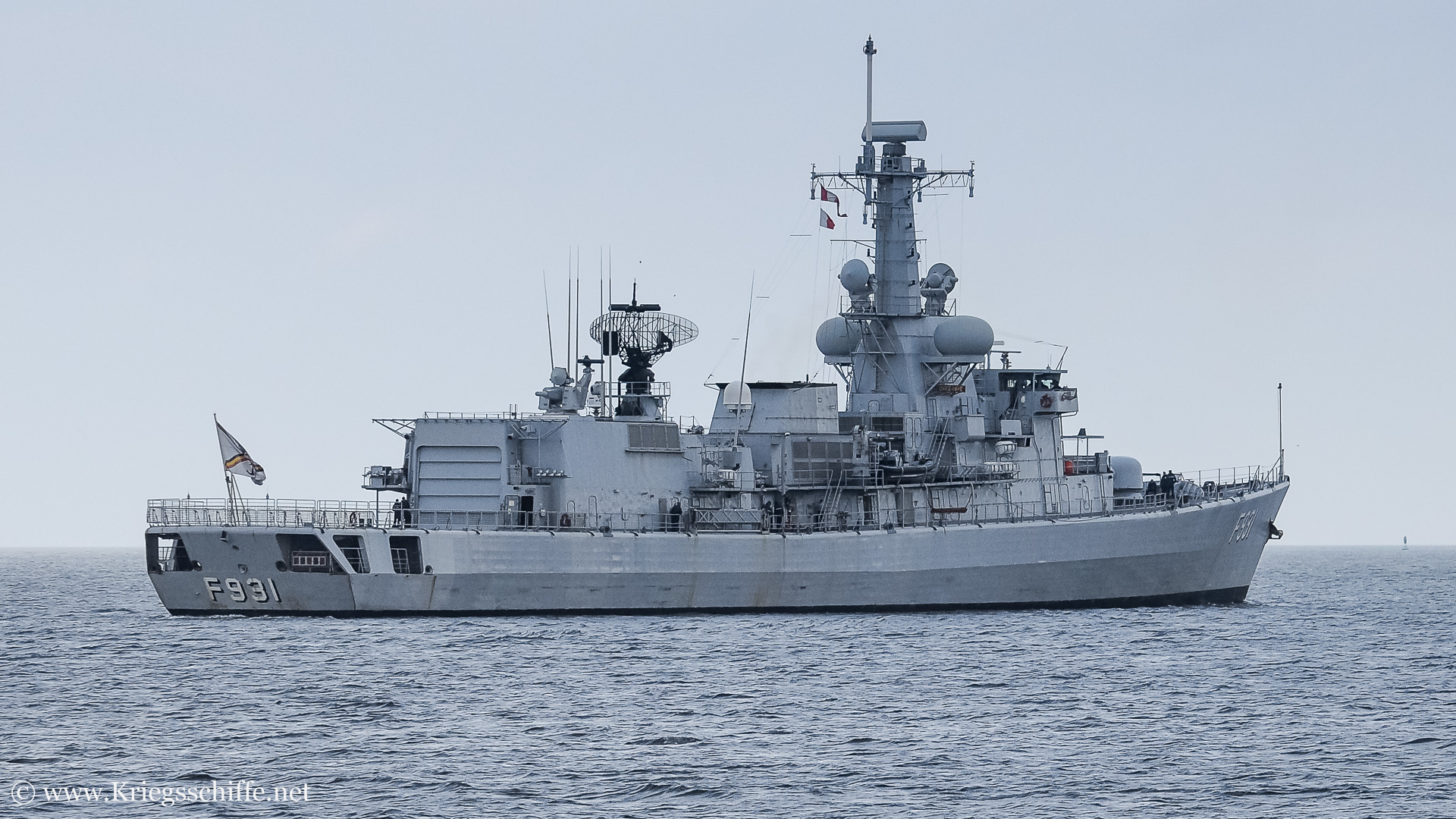

F 931 ‘Louise Marie’ (2013 – Kiel)
Typverdrängung: | 2.800 ts | ||
Höchstverdrängung: | 3.320 ts | ||
Länge: | 122,25 m | ||
Breite: | 14,37 m | ||
Tiefgang: | 4,3 m | ||
Besatzung: | 154 |
Art: | CODOG | (COmbined Diesel Or Gas) | |
Wellen: | 2x | ||
Leistung Diesel: | 2x | 4.850 Ps = 9.700 Ps |
|
Leistung Gasturbine: | 2x | 17.100 Ps = 34.200 Ps |
|
max. Geschwindigkeit: | 29 Kn | ||
Reichweite: | 4.000 nm bei 19 kn | ||
Treibstoffvorrat Schiff: | ? ts |
Nav.-Radar: | 1x | 1690/9 |
|
See-Radar: | 1x | SeaWatcher 100 | |
Luft-Radar: | 1x | SMART-S Mk 1 |
(3D) |
1x | LW-08 | (2D) | |
Bug-Sonar: | 1x | PHS-36 | (MF) |
Schlepp-Sonar | 1x |
Anaconda DSBV 61 |
(VLF) |
Feuerleitradar: | 2x | STIR 1.8 | |
Elektrooptisch: | 1x | GateKeeper |
ESM: | 1x |
AR-700 |
(APECS II) |
ECM: | 1x | AR-740 |
|
Täuschkörper: | 1x |
SLQ-25 ‘Nixie’ |
|
2×6 | Mk 36 SRBOC |
Geschütze: | 1×1 | 76 mm /62 cal ‘Compact’ |
|
SSM: | 2×4 | ‘Harpoon’ Block 1C |
|
SAM: | 1×16 | RIM-7M ‘Sea Sparrow’ | (Launcher: Mk 48 Mod 1 VLS) |
ASW: | 2×2 | 324 mm ASW-TT – Mk 32 Mod 9 |
(Torpedo: Mk 46 Mod 5) |
CIWS | 1×1 | ‘Goalkeeper’ | |
Sonstiges: | – |
Hubschrauber: | 1x | NH-90 |
Einheiten
Kennung | Name | Bauwerft | Kiellegung | Stapellauf | Indienst | Außerdienst | Verbleib |
---|---|---|---|---|---|---|---|

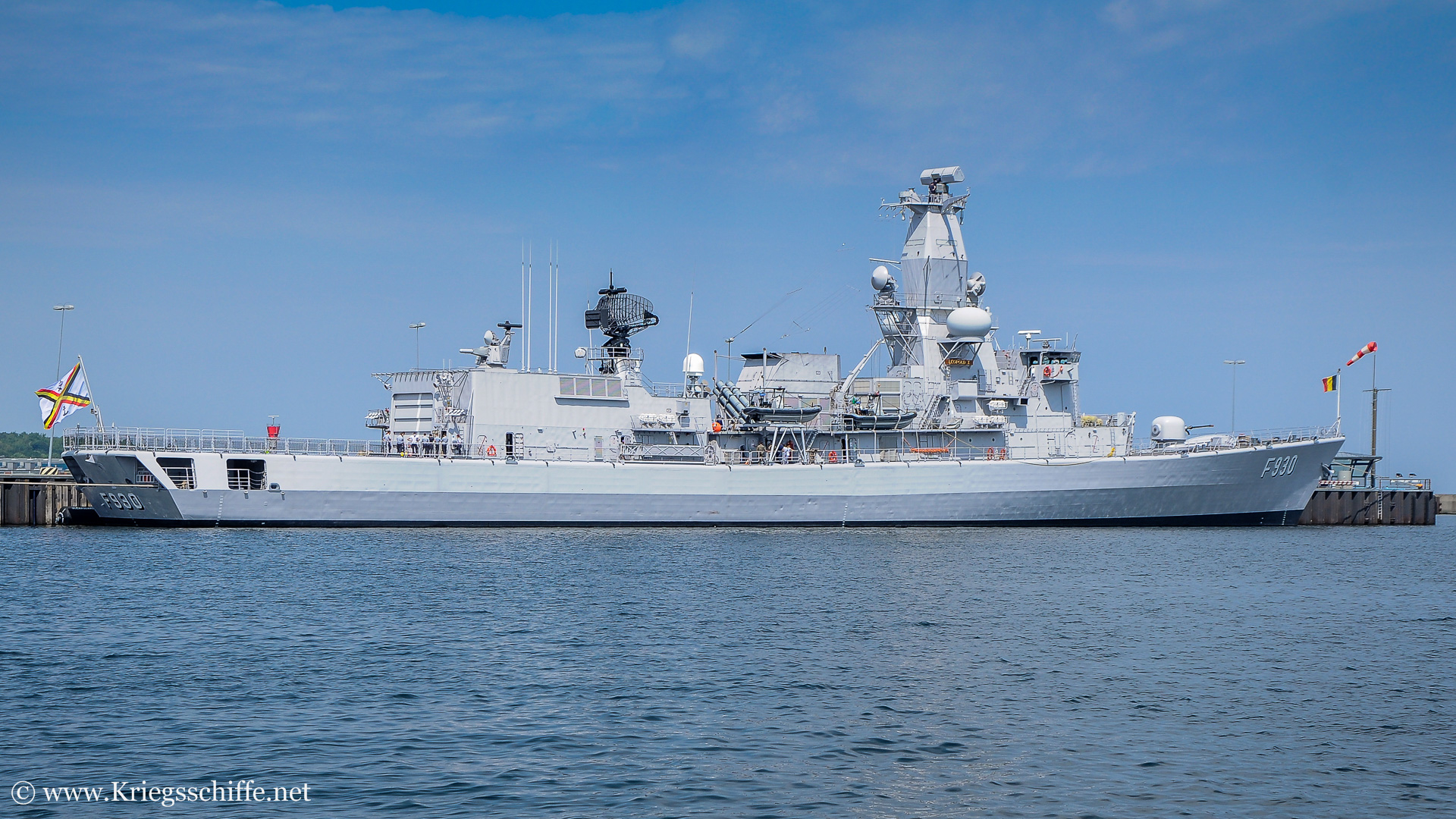

F 930 | Leopold I (ex Karel Doorman) | Schelde Shipbuilding, NL | 26.02.1985 | 20.04.1988 | 29.03.2007 | – | Aktiv |
F 931 | Louise-Marie (ex Willem Van der Zaan) | Schelde Shipbuilding, NL | 06.11.1985 | 21.01.1989 | 08.04.2008 | – | Aktiv |
