FFG ‘Broadsword’ Klasse

Type 22 Batch I – ‘Broadsword’ Klasse

Type 22 Batch II – ‘Boxer’ Klasse

Type 22 Batch III – ‘Conwall’ Klasse

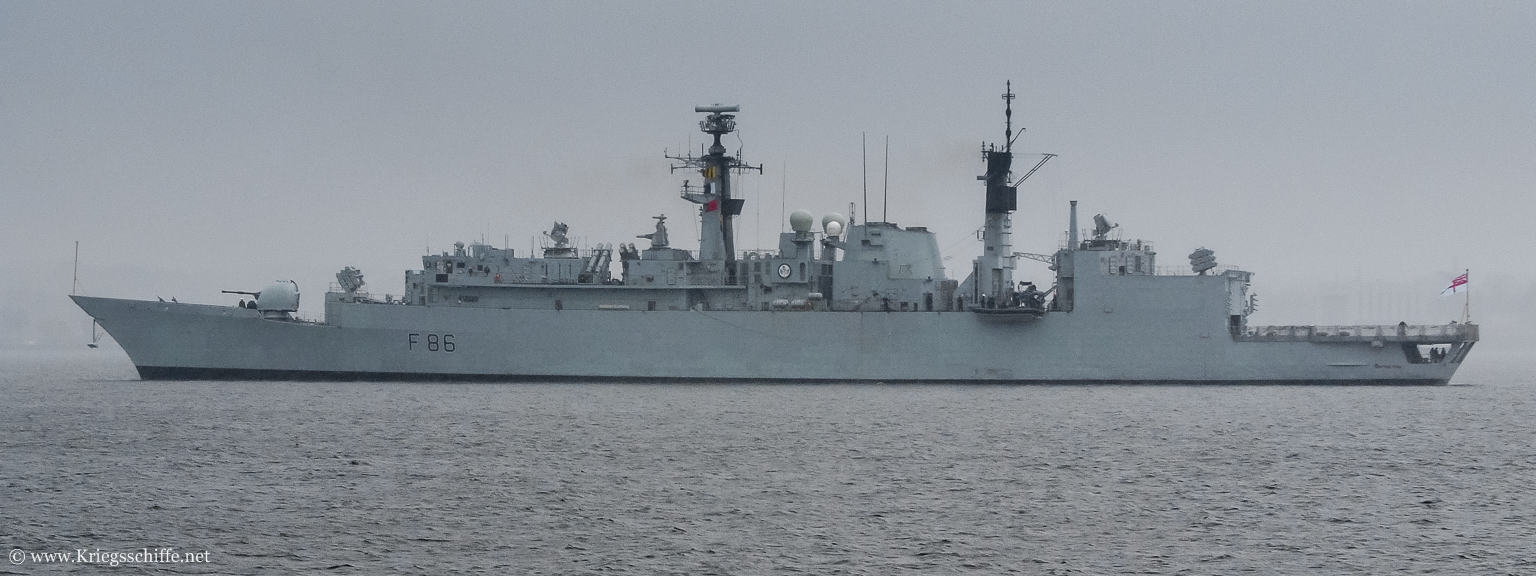

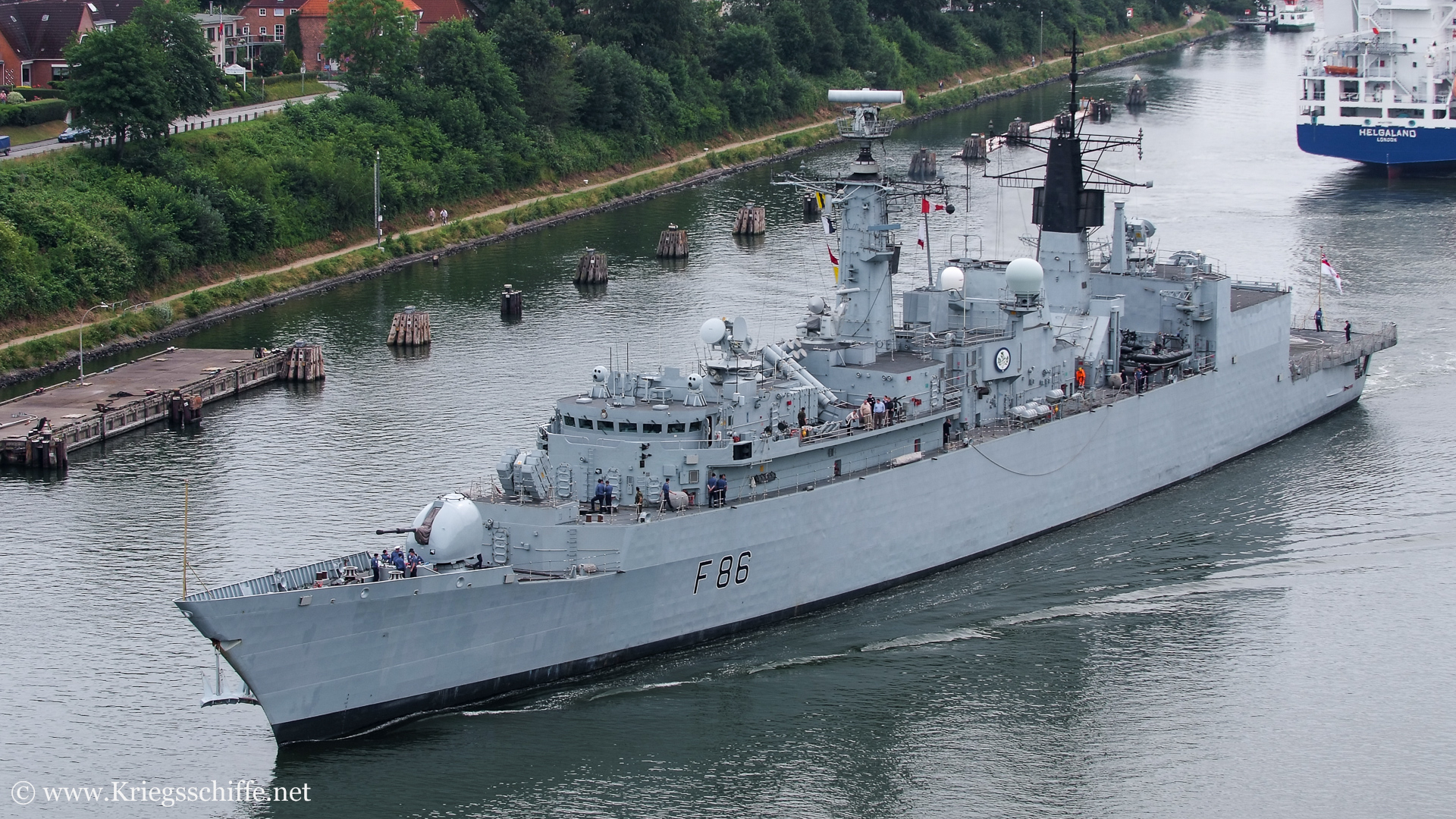

F 86 ‘Campbeltown’,  Type 22 Batch III (2007 – Kiel)

Typverdrängung: 4.200 ts
Höchstverdrängung: 4.900 ts
Länge: 148,10 m
Breite: 14,75 m
Tiefgang: 5,35 m
Tiefgang max.: 6,40 m
Besatzung: 250
Art: COGAG (COmbined Gas and Gas)
Wellen: 2x
Leistung Diesel: 2x 5.340 Ps = 10.680 Ps
(Rolls-Royce ‘Tyne RM3C’ – Cruising, bis 18 kn)
Leistung Gasturbine: 2x  18.770 Ps = 37.540 Ps
(Rolls-Royce ‘Spey SM1A’ – High Speed)
max. Geschwindigkeit: 31 kn
Reichweite: 7.000 nm bei 18 kn
  12.000 nm bei 14 kn
Treibstoffvorrat Schiff: 700 ts
Treibstoffvorrat Hubschrauber: 80 ts
Nav.-Radar: 1x Type 1007
See-Radar:
Luft-Radar: 1x Type 967M/968
Rumpf-Sonar: 1x Type 2050
Schlepp-Sonar

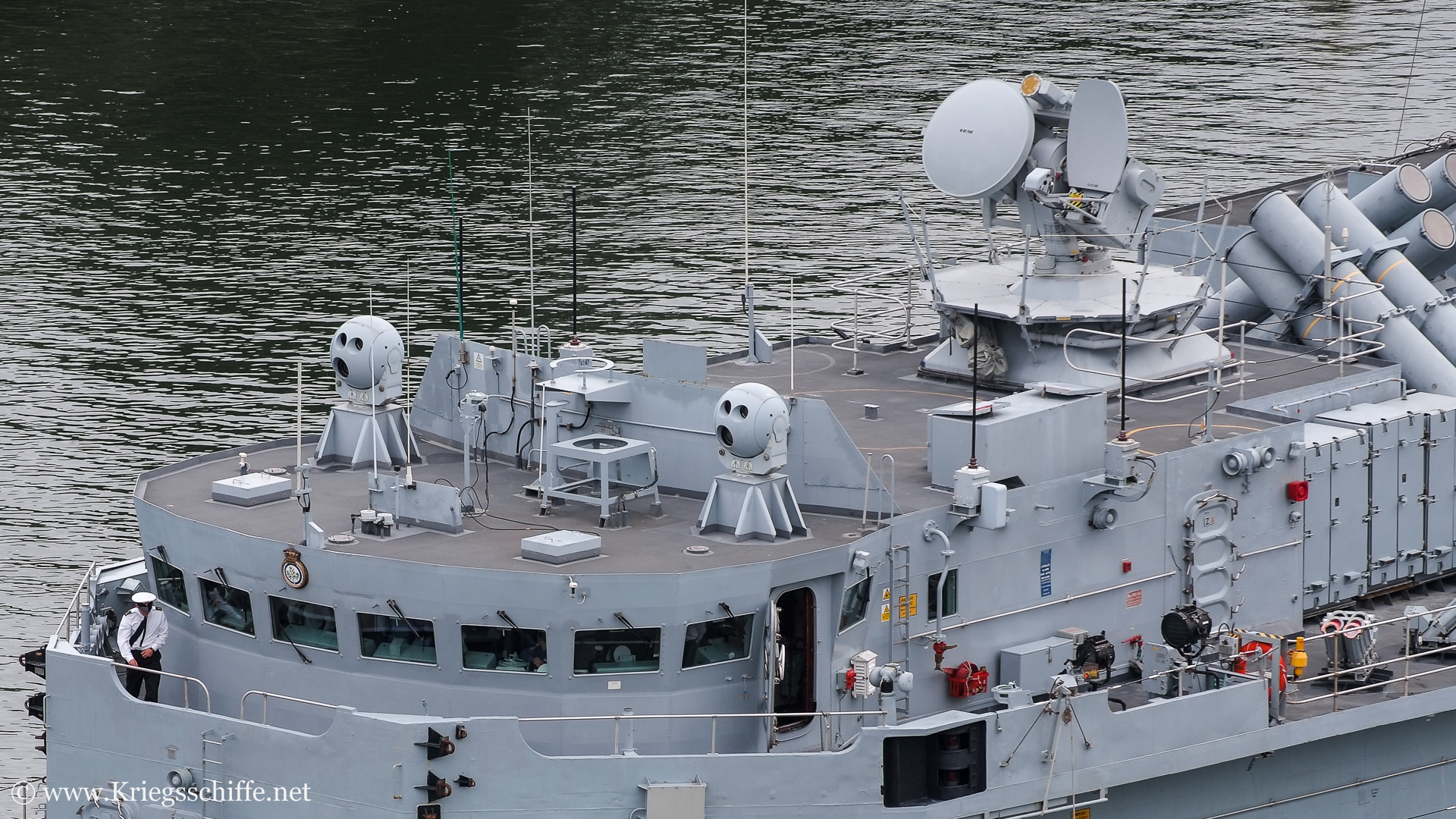

Feuerleitradar: 2x Type 911
Elektrooptisch: 2x GSA 8 ‘Sea Archer’
ESM: 1x
UAT
ECM:
Täuschkörper: 4×6 Mk 137 ‘Sea Gnat’

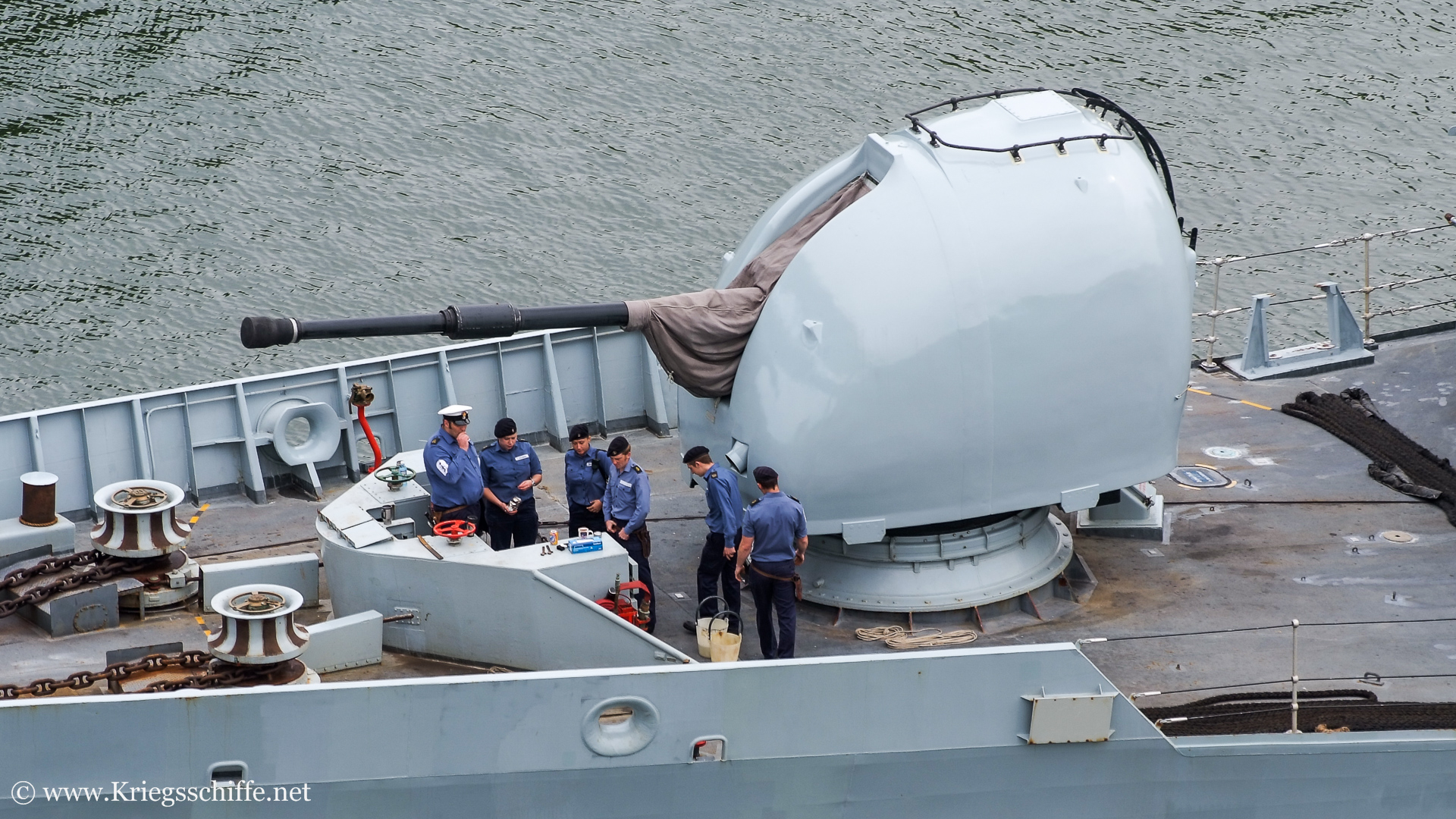

Geschütze: 1×1 114 mm /55 cal Mk 8
  2×1 30 mm /75 cal ‘DS 30B’
SSM: 2×4 ‘Harpoon’ 1C (GWS 60)
SAM: 2×6 ‘Sea Wolf’  (GWS 25 Mod 3, 2×24 FK)
ASW: 2×3 324 mm ASW-TT (Torpedo: ‘Stingray’)
CIWS 1×1 30 mm ‘Goalkeeper’
Sonstiges:
Hubschrauber: 2x Westland HMA 8 ‘Sea Lynx’
